Configure Connect with Avaya Agent
Configure Avaya Agent call devices and advanced audio settings before signing in for Connect calls.
Prepare Avaya Agent
Prepare the physical and virtual audio paths before changing Avaya Agent. Connect the wired headset, open Connect, and confirm that the real microphone and speaker work in How I Sound?. Keep a record of the original Avaya Agent devices so the configuration can be reversed if the test is unsuccessful.
- Connect: select the physical headset and the correct source and destination languages.
- Operating system: confirm that Connect Mic and Connect Speaker are present.
- Avaya Agent: sign in with an account allowed to change audio settings.
- Test participant: use a colleague or second device that can confirm both directions.
Choose the device pair
The correct speaker depends on which side of the conversation must be translated. Always use Connect Mic for translated outgoing speech, then route incoming speech through Connect Speaker only when Connect needs to process that direction. Keep alerts and ringtones on the physical headset whenever Avaya Agent provides a separate selector.
| Translation direction | Avaya Agent microphone | Avaya Agent speaker |
|---|---|---|
| Bidirectional | Connect Mic | Connect Speaker |
| Outgoing only | Connect Mic | Physical headset |
| Incoming only | Physical headset | Connect Speaker |
Configure Avaya Agent
Follow the application-specific path below after Connect is ready. Save the device selection, then reopen the relevant settings to confirm that Avaya Agent did not revert to a system default or a previously connected headset. Complete the sequence before enabling Connect on a live conversation.
- Connect to the organization VPN when required, then open Connect and verify the physical headset.
- Launch Avaya Agent but do not sign in yet; DirectSound may be configurable only before the agent session begins.

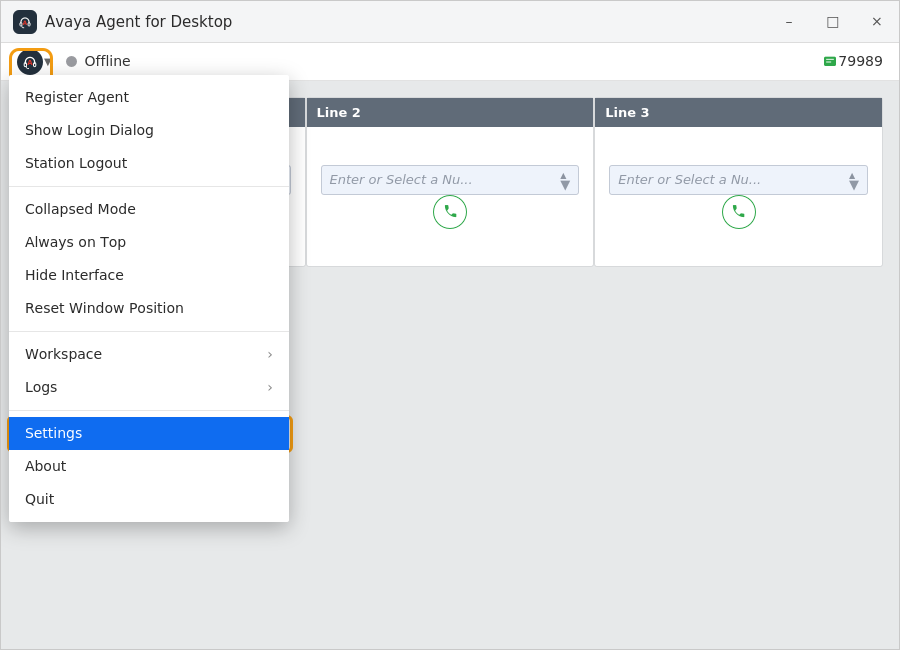

- Select the Avaya menu in the upper-left corner, choose Settings, and open Audio.

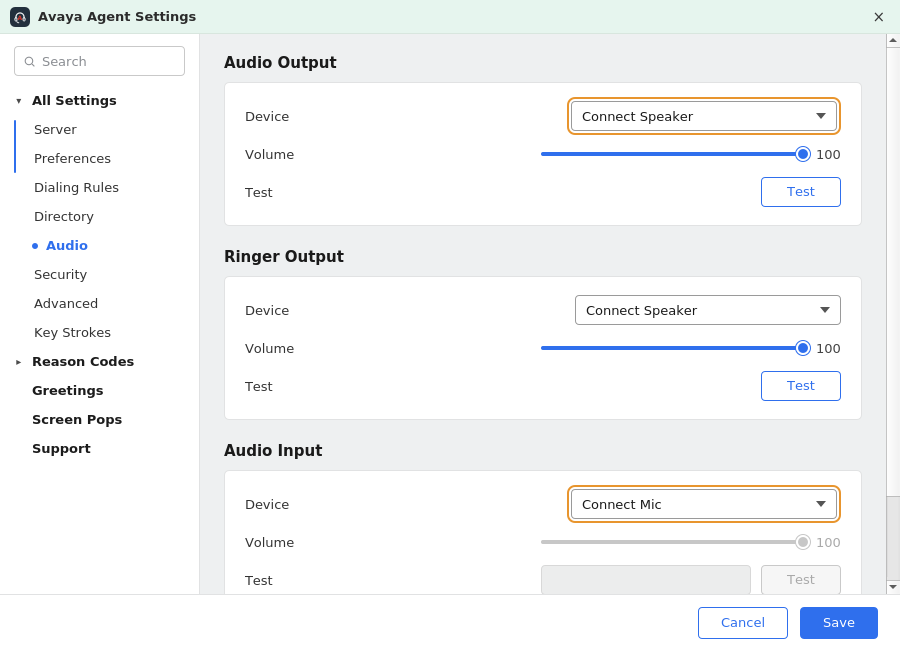

Open Settings before signing in to the agent session. - Choose Connect Mic for Audio Input and the appropriate output for the translation direction. Keep the ringer on a device the agent can hear.

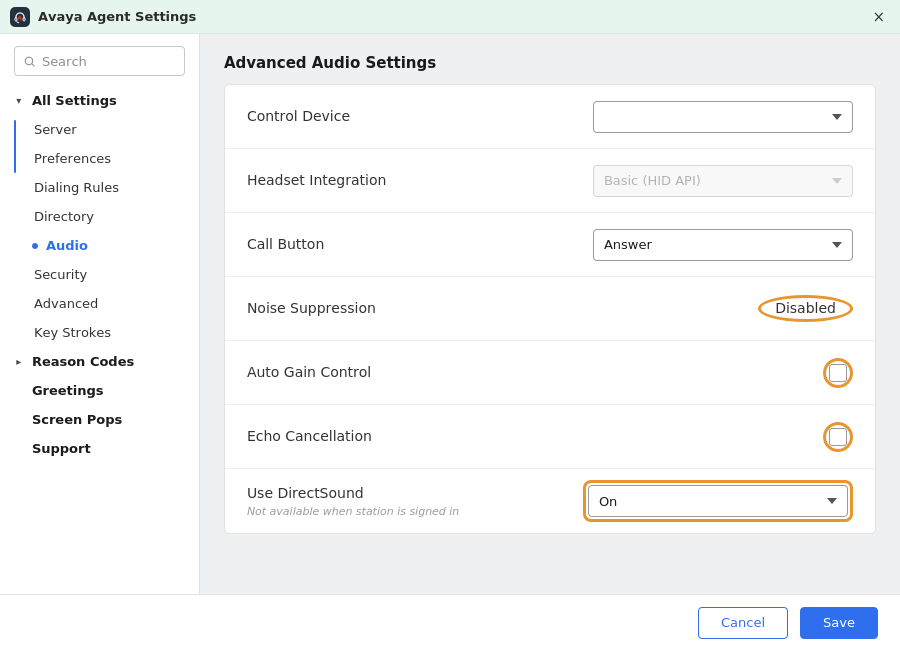

Assign the Connect call input and output, while keeping the ringer deliberate. - Open Advanced Audio Settings, disable Noise Suppression and Auto Gain Control, test Echo Cancellation off with a closed headset, and enable DirectSound when required by the deployment.
Disable competing processing and configure DirectSound before signing in. - Save the settings, select Sign In All, and complete an internal test call before taking live interactions.
Control extra processing
A calling platform can apply automatic gain, echo control, noise suppression, or voice enhancement before Connect receives the signal. Begin with the simplest stable path and disable overlapping processing during the baseline test. Re-enable one control only when the real call environment requires it and the recipient confirms a measurable improvement.
- Configure DirectSound before signing in when the control becomes locked during an agent session.
- Disable Avaya noise suppression and automatic gain during the baseline test.
- Keep the physical ringer audible even when call audio is routed through Connect.
Validate the complete call
A saved setting is not proof that the integration works during an active call. Test the physical headset, Connect processing, the Avaya Agent virtual route, and remote playback as one complete chain. Use the same account, network, VPN, and headset that will be used in production so the result represents the real workflow.
- Use How I Sound? to confirm a clean physical microphone signal.
- Join an internal call and verify the active Avaya Agent devices inside the call surface.
- Press CONNECT-ON and confirm that the timer starts and live transcription responds.
- Speak a complete sentence and ask the remote participant what they hear.
- Test the reverse direction when using bidirectional or incoming-only translation.
- Reconnect the headset once and confirm that Avaya Agent keeps or correctly restores the saved route.
Resolve common issues
Use the symptom to identify the layer that needs attention instead of reinstalling every component. Confirm the current device names before changing them, then make one correction and repeat the same test. If the issue continues, record the application version, operating system, selected devices, translation direction, and the exact point where audio stops.
| Symptom | Likely cause | Next check |
|---|---|---|
| Connect devices are missing | Avaya Agent cached its device list | Open Connect first, then restart Avaya Agent. |
| The recipient hears natural speech | The physical microphone is active | Select Connect Mic in the active call settings. |
| Incoming translation is silent | The call speaker bypasses Connect | Select Connect Speaker for the incoming path. |
| Speech is clipped or metallic | Competing audio processing | Disable one gain, suppression, or enhancement control and retest. |
Frequently asked questions
These answers cover the decisions most likely to change the Avaya Agent result. Confirm the translation direction before applying a recommendation because outgoing-only and bidirectional calls do not use the same speaker route. Keep the last working configuration available so a failed adjustment can be reversed without disrupting the next call.
Why can’t I change DirectSound in Avaya Agent?
The setting may be locked after the agent signs in. Sign out, close Avaya Agent, reopen it, configure Advanced Audio Settings before signing in, and then test the route again.
Which devices should I select in Avaya Agent?
Select Connect Mic whenever outgoing speech must be translated. Select Connect Speaker when incoming speech must also pass through Connect; otherwise keep the physical headset as the call speaker.
Why are Connect devices missing from Avaya Agent?
Close Avaya Agent, confirm that Connect Mic and Connect Speaker appear in the operating system, keep Connect open, and relaunch the desktop application. Applications and browser tabs often keep the device list that existed when they started.
How do I know the Avaya Agent integration is ready?
Run How I Sound?, place a real test call, press CONNECT-ON, confirm that the timer and transcription respond, and verify what both participants hear. A saved device name alone does not prove the complete route.
Support
Need help? Get in touch with our Support Team for assistance. Include the calling application, operating system, selected microphone and speaker, translation direction, and the exact step that failed. A short description of the expected result and what happened instead helps the team respond more quickly.
