Configure Connect with Cisco Jabber

Prepare Cisco Jabber

Prepare the physical and virtual audio paths before changing Cisco Jabber. Connect the wired headset, open Connect, and confirm that the real microphone and speaker work in How I Sound?. Keep a record of the original Cisco Jabber devices so the configuration can be reversed if the test is unsuccessful.

• Connect: select the physical headset and the correct source and destination languages.
• Operating system: confirm that Connect Mic and Connect Speaker are present.
• Cisco Jabber: sign in with an account allowed to change audio settings.
• Test participant: use a colleague or second device that can confirm both directions.

Choose the device pair

The correct speaker depends on which side of the conversation must be translated. Always use Connect Mic for translated outgoing speech, then route incoming speech through Connect Speaker only when Connect needs to process that direction. Keep alerts and ringtones on the physical headset whenever Cisco Jabber provides a separate selector.

Configure Cisco Jabber

Follow the application-specific path below after Connect is ready. Save the device selection, then reopen the relevant settings to confirm that Cisco Jabber did not revert to a system default or a previously connected headset. Complete the sequence before enabling Connect on a live conversation.

• Open Connect, attach the physical headset, and confirm that Connect Mic and Connect Speaker are present before launching Jabber.

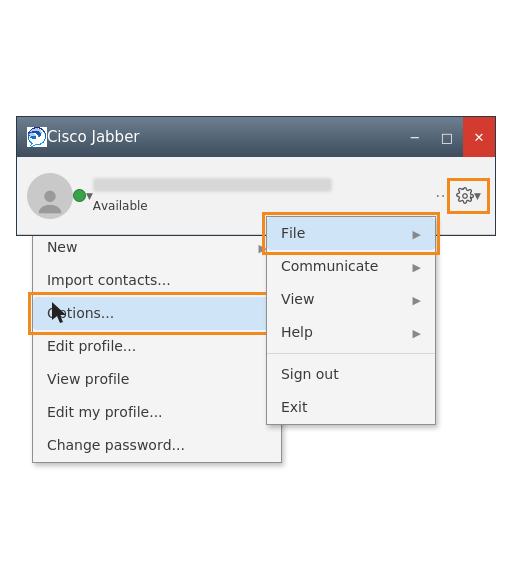

• Launch Cisco Jabber, sign in if required, and open the gear menu.
• Choose File → Options, then select Audio from the left navigation.

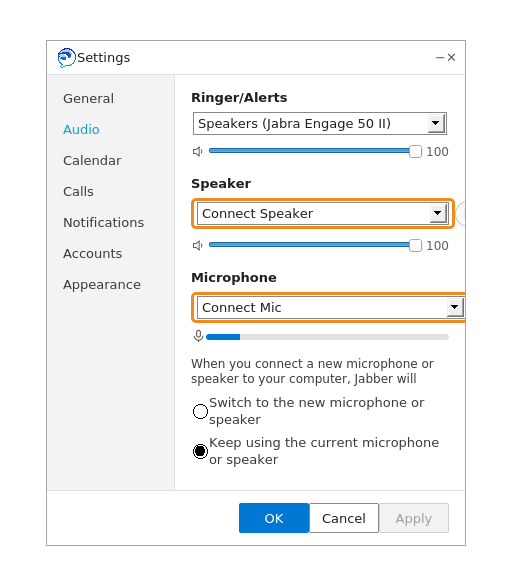

• Select Connect Mic as the microphone. Select Connect Speaker for bidirectional translation, or the physical headset for outgoing-only translation.



• Set the call level high enough for a clean signal without clipping; use the 80–100% range only as a starting point and confirm it with a test.

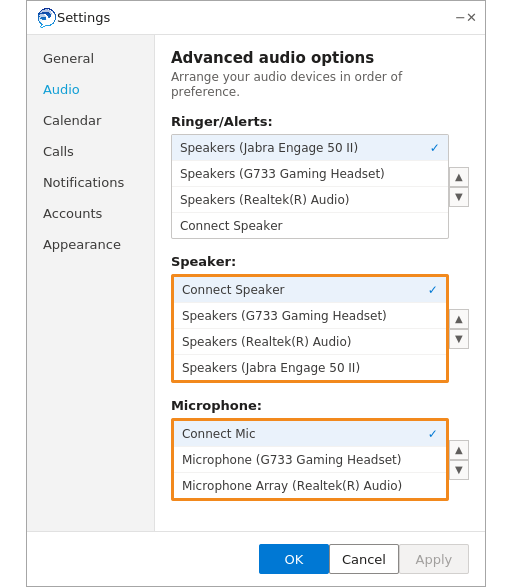

• Open Advanced audio options, place the Connect devices at the intended priority, then select Apply and OK.



Control extra processing

A calling platform can apply automatic gain, echo control, noise suppression, or voice enhancement before Connect receives the signal. Begin with the simplest stable path and disable overlapping processing during the baseline test. Re-enable one control only when the real call environment requires it and the recipient confirms a measurable improvement.

• Keep Jabber automatic level behavior stable while testing.
• Do not place the physical microphone above Connect Mic in the active call-device preference when outgoing translation is required.
• Reopen Jabber when a newly installed Connect device is absent from its menus.

Validate the complete call

A saved setting is not proof that the integration works during an active call. Test the physical headset, Connect processing, the Cisco Jabber virtual route, and remote playback as one complete chain. Use the same account, network, VPN, and headset that will be used in production so the result represents the real workflow.

• Use How I Sound? to confirm a clean physical microphone signal.
• Join an internal call and verify the active Cisco Jabber devices inside the call surface.
• Press CONNECT-ON and confirm that the timer starts and live transcription responds.
• Speak a complete sentence and ask the remote participant what they hear.
• Test the reverse direction when using bidirectional or incoming-only translation.
• Reconnect the headset once and confirm that Cisco Jabber keeps or correctly restores the saved route.

Resolve common issues

Use the symptom to identify the layer that needs attention instead of reinstalling every component. Confirm the current device names before changing them, then make one correction and repeat the same test. If the issue continues, record the application version, operating system, selected devices, translation direction, and the exact point where audio stops.

Frequently asked questions

These answers cover the decisions most likely to change the Cisco Jabber result. Confirm the translation direction before applying a recommendation because outgoing-only and bidirectional calls do not use the same speaker route. Keep the last working configuration available so a failed adjustment can be reversed without disrupting the next call.
