Configure Connect with MaX UC
Configure MaX UC microphone and call output devices for Connect without disrupting ringtones.
Prepare MaX UC
Prepare the physical and virtual audio paths before changing MaX UC. Connect the wired headset, open Connect, and confirm that the real microphone and speaker work in How I Sound?. Keep a record of the original MaX UC devices so the configuration can be reversed if the test is unsuccessful.
- Connect: select the physical headset and the correct source and destination languages.
- Operating system: confirm that Connect Mic and Connect Speaker are present.
- MaX UC: sign in with an account allowed to change audio settings.
- Test participant: use a colleague or second device that can confirm both directions.
Choose the device pair
The correct speaker depends on which side of the conversation must be translated. Always use Connect Mic for translated outgoing speech, then route incoming speech through Connect Speaker only when Connect needs to process that direction. Keep alerts and ringtones on the physical headset whenever MaX UC provides a separate selector.
| Translation direction | MaX UC microphone | MaX UC speaker |
|---|---|---|
| Bidirectional | Connect Mic | Connect Speaker |
| Outgoing only | Connect Mic | Physical headset |
| Incoming only | Physical headset | Connect Speaker |
Configure MaX UC
Follow the application-specific path below after Connect is ready. Save the device selection, then reopen the relevant settings to confirm that MaX UC did not revert to a system default or a previously connected headset. Complete the sequence before enabling Connect on a live conversation.
- Open Connect, select the physical headset, and confirm the Connect virtual devices before launching MaX UC.
- Launch MaX UC and sign in to the assigned account.

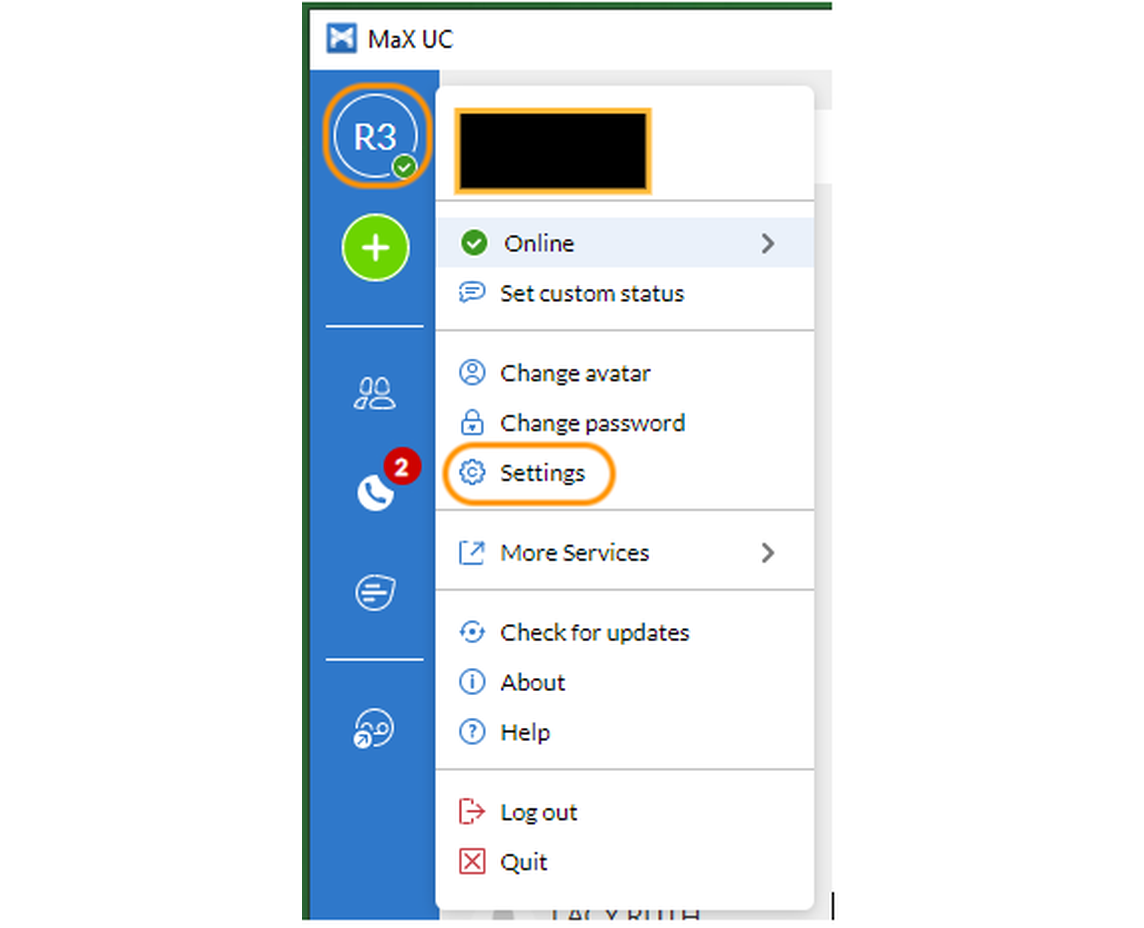

- Select the profile icon in the upper-left corner and open Settings.

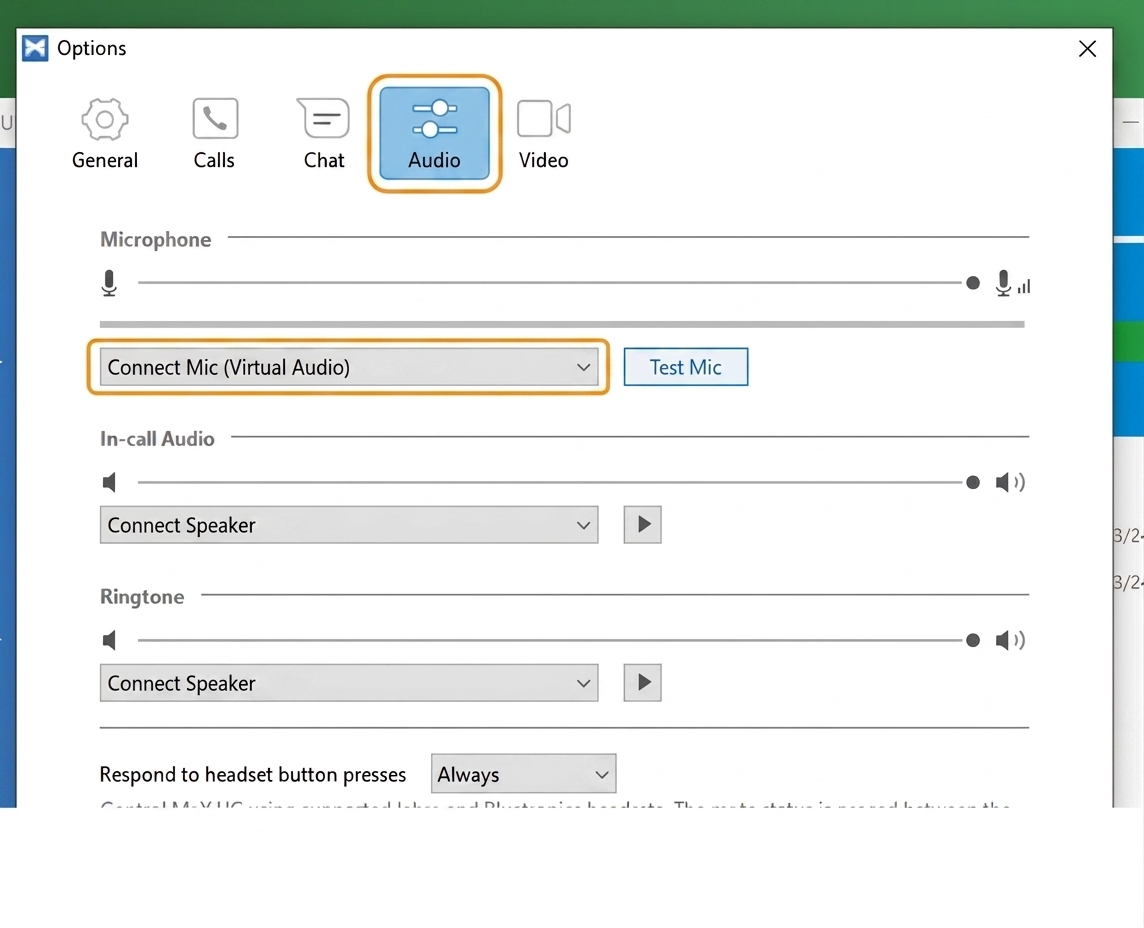

Open Settings from the MaX UC profile menu. - Choose Audio, then select Connect Mic under Microphone.
Select Connect Mic and configure In-call Audio and Ringtone for the translation mode. - For outgoing-only translation, keep the physical headset for In-call Audio and Ringtone. For bidirectional translation, use Connect Speaker for the call output while keeping the ringtone audible.
- Apply the configuration and complete an internal call before using the profile with a customer.
Control extra processing
A calling platform can apply automatic gain, echo control, noise suppression, or voice enhancement before Connect receives the signal. Begin with the simplest stable path and disable overlapping processing during the baseline test. Re-enable one control only when the real call environment requires it and the recipient confirms a measurable improvement.
- Do not change In-call Audio or Ringtone when only outgoing speech needs translation.
- Separate ringtone behavior from the active call output.
- Reopen MaX UC after virtual audio repair so its device list is refreshed.
Validate the complete call
A saved setting is not proof that the integration works during an active call. Test the physical headset, Connect processing, the MaX UC virtual route, and remote playback as one complete chain. Use the same account, network, VPN, and headset that will be used in production so the result represents the real workflow.
- Use How I Sound? to confirm a clean physical microphone signal.
- Join an internal call and verify the active MaX UC devices inside the call surface.
- Press CONNECT-ON and confirm that the timer starts and live transcription responds.
- Speak a complete sentence and ask the remote participant what they hear.
- Test the reverse direction when using bidirectional or incoming-only translation.
- Reconnect the headset once and confirm that MaX UC keeps or correctly restores the saved route.
Resolve common issues
Use the symptom to identify the layer that needs attention instead of reinstalling every component. Confirm the current device names before changing them, then make one correction and repeat the same test. If the issue continues, record the application version, operating system, selected devices, translation direction, and the exact point where audio stops.
| Symptom | Likely cause | Next check |
|---|---|---|
| Connect devices are missing | MaX UC cached its device list | Open Connect first, then restart MaX UC. |
| The recipient hears natural speech | The physical microphone is active | Select Connect Mic in the active call settings. |
| Incoming translation is silent | The call speaker bypasses Connect | Select Connect Speaker for the incoming path. |
| Speech is clipped or metallic | Competing audio processing | Disable one gain, suppression, or enhancement control and retest. |
Frequently asked questions
These answers cover the decisions most likely to change the MaX UC result. Confirm the translation direction before applying a recommendation because outgoing-only and bidirectional calls do not use the same speaker route. Keep the last working configuration available so a failed adjustment can be reversed without disrupting the next call.
Should I change In-call Audio and Ringtone in MaX UC?
Not for an outgoing-only route: leave both on the physical headset and change only the microphone to Connect Mic. For bidirectional translation, change the active call output to Connect Speaker but keep the ringtone on an audible physical device.
Which devices should I select in MaX UC?
Select Connect Mic whenever outgoing speech must be translated. Select Connect Speaker when incoming speech must also pass through Connect; otherwise keep the physical headset as the call speaker.
Why are Connect devices missing from MaX UC?
Close MaX UC, confirm that Connect Mic and Connect Speaker appear in the operating system, keep Connect open, and relaunch the desktop application. Applications and browser tabs often keep the device list that existed when they started.
How do I know the MaX UC integration is ready?
Run How I Sound?, place a real test call, press CONNECT-ON, confirm that the timer and transcription respond, and verify what both participants hear. A saved device name alone does not prove the complete route.
Support
Need help? Get in touch with our Support Team for assistance. Include the calling application, operating system, selected microphone and speaker, translation direction, and the exact step that failed. A short description of the expected result and what happened instead helps the team respond more quickly.
